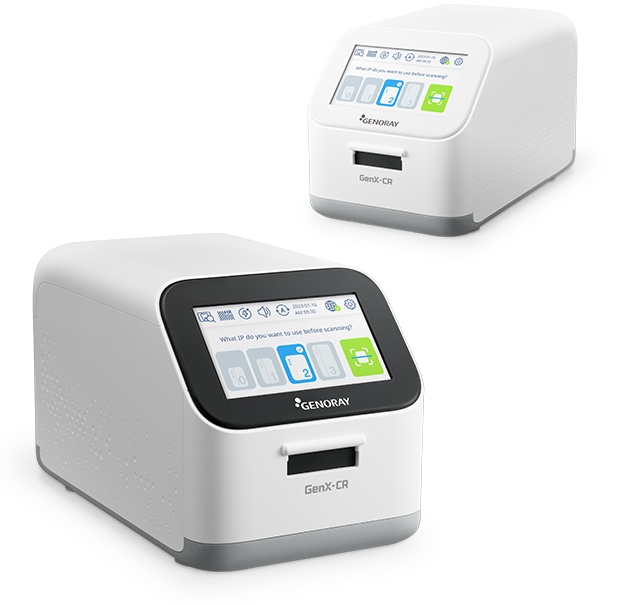

DENTAL
- Thin film for clear images
- Lightweight at 3.5lbs
- High-capacity memory
- Touchscreen interface
- Four types of image plates
Image Plates
SIZE 0
31 x 22 mm
SIZE 1
40 x 24 mm
(Option)
SIZE 2
41 x 31 mm
SIZE 3
54 x 27 mm
(Option)
A variety of plate sizes(0 through 3) are available, allowing selection of the most suitable option for pediatric, adult, and occlusal imaging

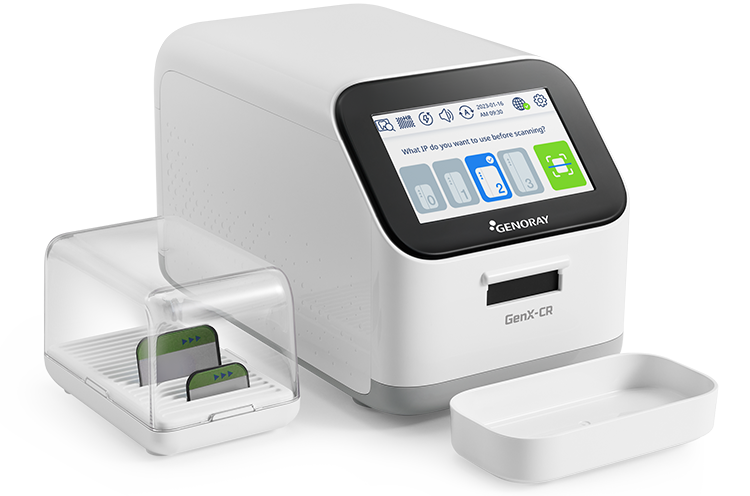

*Option: Image plates in Size 1 and Size 3A dedicated storage case for the image plates is available, ensuring hygienic handling and management
Features
High-Capacity Memory
Stores up to 500 images internally, removing the need for an external storage device and allowing ample data retention

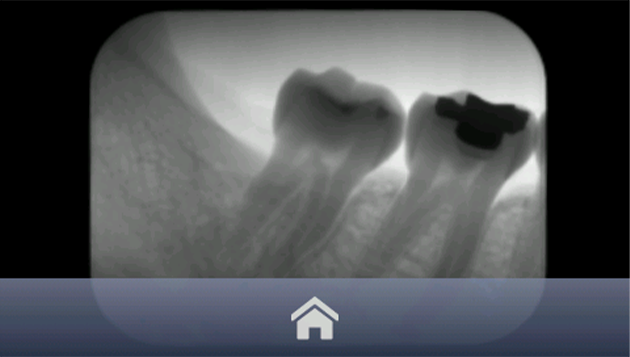

Preview Function
After scanning, the touchscreen provides quick confirmation that the image has been successfully captured

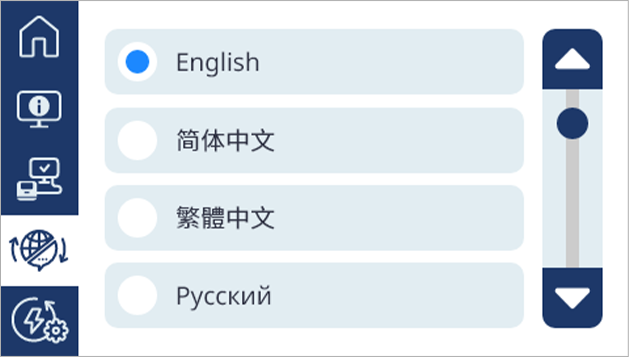

13-Language Support
Supports 13 countries and 14 languages, including Korean, English, Simplified Chinese, Traditional Chinese, Japanese, German, Spanish, French, Italian, Thai, Turkish, Russian, Arabic, and Farsi
Touchscreen Interface
Provides convenient and intuitive operation
Compact Design
Small footprint for
space-saving,
weighing just 3.5lbs,
making it easy to
handle and install
Workflow
STEP 1
Place the Image
Plate (IP) in the
patient's mouth
then take images using
a handheld X-ray device
STEP 2
Scan the IP
Select the IP size
> Insert the IP
> Begin the scan
> Check the displayed image
STEP 3
Review Scanned
Images
Confirm final images
using PortView software

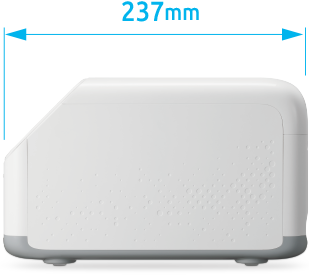

Dimensions

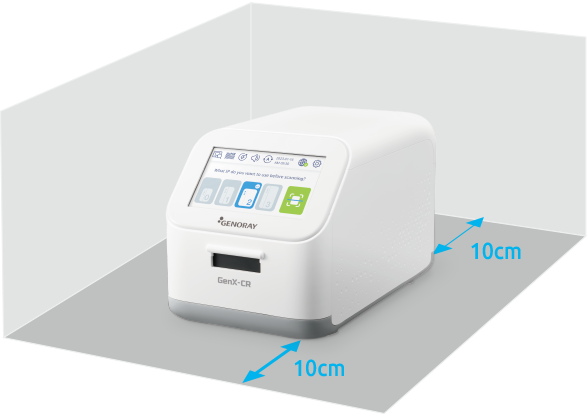

Installation Space
Item Name : Dental Imaging Acquisition Device
Deliberation Approval Number : Association-2024-46-019
Period of Validity : December 18, 2024 – December 17, 2027
"This product is classified as a medical device. Prior to use, please thoroughly review and comply with all warnings and instructions."
